2G11 4 Pin H Tube plug in surface mounted lamp holders

2G11 4 Pin H Tube plug in surface mounted lamp holders
2G11 4 Pin H Tube plug in surface mounted lamp holders F445


Screw fixing vertically/horizontally
PBT body, Phosphor bronze contacts, stainless spring
Weight.20g
Package.100pcs

Lamp support for TC-L lamps
Screw fixing
PC body
Weight.1.6g
Package.1000pcs
Rated temperature: T140
Push wire terminals 2 holes: 0.5-1 mm2/18 AWG

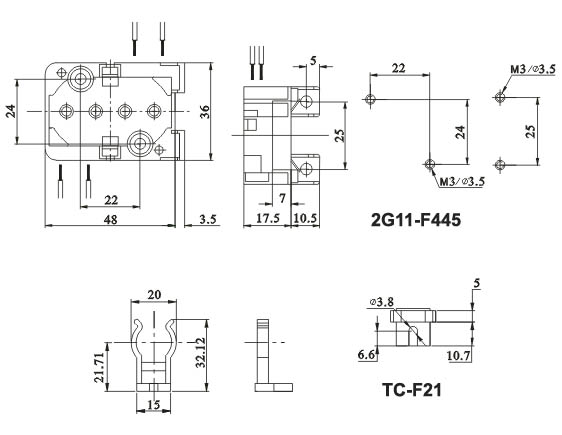

2G11 4 Pin H Tube plug in surface mounted lamp holders Diagram

A 4 pin 2g11 base CFL socket is a type of socket used for compact fluorescent lamps (CFLs). It has four pins arranged in a straight line and a base with two notches.

The compact fluorescent lamps (CFL) are a type of bulb which is commonly known for its efficiency for using less power than other commonly used bulbs, whilst still emitting the same amount of lighting.

CFLs have been designed in order to replace the incandescent lamp and can fit into most existing lighting fixtures that may have previously been used for incandescent bulbs.

When you compare the two (CLS and Incandescent) the incentive to use CLS shows due to the lower power usage for the amount of light emitted and its longer life span. Although the CLS bulbs are usually more expensive, in the long run they are also more affordable too.

2G11 lamp holder Plastic for led CFL UV lamps

FAQ:

What is a 4 pin 2g11 base CFL socket used for?
A: It is used to hold 4 pin 2g11 base CFL bulbs and connect them to the electrical circuit.

How do I install a 4 pin 2g11 base CFL socket?
A: The socket is usually installed by inserting it into a compatible fixture and connecting the wires according to the instructions.

Can a 4 pin 2g11 base CFL socket be used with UV bulbs?
A: Yes, it is compatible with LED bulbs.

What is the voltage rating of a 4 pin 2g11 base CFL socket?
A: The voltage rating of the socket is typically around 240V to 277V.

Can a 4 pin 2g11 base CFL socket be used with a dimmer switch?
A: Yes, but it requires a compatible CFL bulb and a compatible dimmer switch.

What is the operating temperature range of a 4 pin 2g11 base CFL socket?
A: The operating temperature range varies depending on the manufacturer, but it is typically between -20°C to 50°C.

Is a 4 pin 2g11 base CFL socket suitable for outdoor use?
A: Yes, but it requires a compatible fixture and bulb rated for outdoor use.
