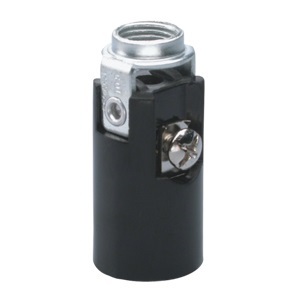

E12 Phenolic Candelabra Lamp holder Edison Screw Base

E12 Phenolic Candelabra Lamp holder Edison Screw Base GE-412-1

Rated Wattage: 75 W
Rated Voltage: 125 V
Body Material: Phenolic
Body Color: Black
Available Height: 40, 43, 50, 53, 74, 77, 87, 73, 100, 125, 150 mm
Hickey: 1/8-27 IPS
Certification and Standard: CSA, UL.

E12 Phenolic Candelabra Lamp holder is a type of socket used for light bulbs with a small Edison screw (SES) base, commonly found in North America.

E12 Phenolic lamp sockets are made of phenolic resin. This plastic material is known for its resistance to heat, strength, and non-conductive characteristics. In the early days of lamp sockets, a material called Bakelite was used to manufacture these sockets. In fact, Bakelite was the name of those light sockets.

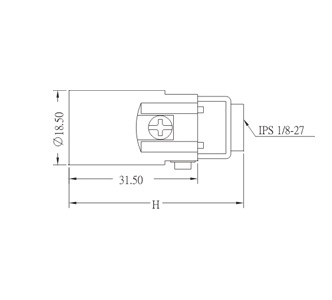

E12 Phenolic Candelabra Lamp holder Edison Screw Base Drawing

FAQ:

What is the maximum wattage for E12 lamp bases?
A: The maximum wattage depends on the specific socket and bulb used, but it is typically around 40 watts.

Can E12 lamp bases be used with LED bulbs?
A: Yes, E12 lamp bases can be used with LED bulbs as long as the bulb has an SES base and is compatible with the voltage of the socket.

What is the voltage rating for E12 lamp sockets?
A: The voltage rating varies, but it is typically 120V AC.

What materials are used to make E12 lamp bases?
A: E12 lamp bases can be made from various materials, including phenolic, plastic, and metal.

Are E12 lamp bases interchangeable with E14 sockets?
A: No, E12 and E14 sockets are not interchangeable as they have different base sizes.

What is the difference between E12 and E26 lamp sockets?
A: E12 sockets have a smaller base than E26 sockets, which are commonly used in North America.

Can E12 lamp bases be used outdoors?
A: E12 lamp bases can be used outdoors as long as they are protected from the elements and the bulb used is rated for outdoor use.

Are E12 lamp bases compatible with dimmer switches?
A: Yes, E12 lamp bases can be used with dimmer switches as long as the bulb used is compatible with the dimmer.

What is the difference between E12 and E17 lamp sockets?
A: E12 bases have a slightly smaller base than E17 sockets, which are commonly used in some appliances and Christmas lights.

Are E12 lamp bases compatible with halogen bulbs?
A: Yes, E12 lamp bases can be used with halogen bulbs as long as the bulb has an SES base and is compatible with the voltage of the base.

What is the thread size for E12 lamp sockets?
A: The thread size for E12 lamp sockets is M12x1.0.
