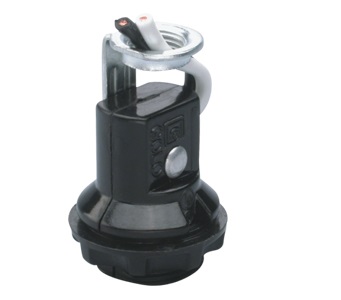

E12 Phenolic Edison Screw Lamp socket base GE-6012

E12 Phenolic Edison Screw Lamp base GE-6012

E12 Phenolic Candelabra Lamp holder Edison Screw Base GE-6012

Rated Wattage: 75 W
Rated Voltage: 125 V
Body Material: Phenolic
Body Color: Black
Wire spec: SPT-1, SPT-2,3173,3321,3122 18AWG
Available Height: 40, 43, 50, 53, 74, 77, 87, 73, 100, 125, 150 mm
Hickey: 1/8-27 IPS
Certification and Standard: CSA, UL.

E12 Phenolic Candelabra Edison Screw Lamp base is slight smaller screw-in socket than then E14 screw-in base. Often used in LED chandeliers retro fits and as energy efficient alternatives to night lights. The E12 LED and E14 LED lamps are also known as LED flame bulbs and LED torpedo bulbs.

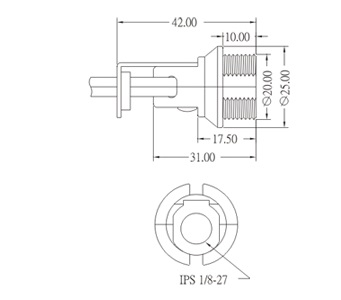

E12 Phenolic Edison Screw Lamp base GE-6012 Drawing

FAQ:

What is phenolic material and why is it used for lamp bases?
Phenolic is a thermosetting plastic that is heat-resistant, durable, and lightweight, making it a suitable material for lamp bases.

Can a E12 phenolic lamp holder be used with LED bulbs?
Yes, E12 phenolic lamp holders can be used with LED bulbs as long as the bulb has the same base size.

What is the maximum wattage for E12 phenolic lamp bases?
The maximum wattage for E12 phenolic lamp bases varies depending on the specific model, but it is typically around 75 watts.

What is the difference between an E12 and E14 lamp holder?
The difference between an E12 and E14 lamp holder is the diameter of the base. E12 has a diameter of 12mm, while E14 has a diameter of 14mm.

What is the temperature rating for E12 phenolic lamp bases?
The temperature rating for E12 phenolic lamp bases varies depending on the specific model, but it is typically around 150°C.

Are E12 phenolic lamp bases suitable for outdoor use?
E12 phenolic lamp bases can be used outdoors as long as they are rated for outdoor use and are properly installed.

Can E12 phenolic lamp bases be used with chandeliers?
Yes, E12 phenolic lamp bases are commonly used with chandeliers, particularly for smaller bulbs.

What is the difference between a candelabra base and E12 lamp base?
A candelabra base refers to a specific size of lamp base, while E12 is a general size category. A candelabra base has a diameter of 12mm and is commonly used for smaller bulbs.

What is the voltage rating for E12 phenolic lamp bases?
The voltage rating for E12 phenolic lamp bases varies depending on the specific model, but it is typically around 250V.

Are E12 phenolic lamp sockets compatible with European light fixtures?
Yes, E12 phenolic lamp sockets are compatible with European light fixtures, but it is important to ensure that the voltage rating is compatible with the local electrical system.

Can E12 phenolic lamp holders be used with incandescent bulbs?
Yes, E12 phenolic lamp holders can be used with incandescent bulbs as well as other types of bulbs as long as they have the same base size.
