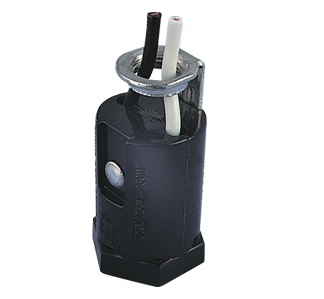

E14 Phenolic Lamp holder base with bracket GE-318
Rated Wattage: 250 W
Rated Voltage: 250 V
Body Material: Phenolic
Body Color: Black
Wire spec: VW-1 600V 105°C 18AWG

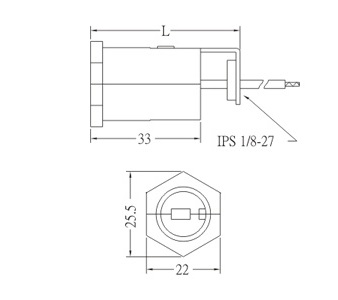

Available Height: 45,54,65,80,90,104,114,128,144,154mm
Certification and Standard: CSA, UL.
E14 Edison Screw Phenolic Socket Description:
Phenolic housing, aluminum or brass shell, steel plated brackets.
An E14 Phenolic lamp holder base with bracket is a type of light bulb socket commonly used with E14 bulbs. It features a phenolic base and a bracket for easy installation.
What is an E14 Phenolic socket?
An E14 Phenolic socket is a type of light bulb socket that is used with E14 bulbs and features a phenolic base.
What is the maximum wattage supported by an E14 Phenolic socket?
The maximum wattage supported by an E14 Phenolic socket depends on the specific socket, but most can support up to 60 watts.
What is the voltage rating of an E14 Phenolic socket?
The voltage rating of an E14 Phenolic socket depends on the specific socket, but most are rated for 220-240 volts.
What is a Phenolic base?
A Phenolic base is a type of plastic material that is heat-resistant and commonly used in light bulb sockets.
What is a bracket in a light bulb socket?
A bracket in a light bulb socket is a feature that allows for easy installation and secure mounting of the socket.
What types of bulbs can be used with an E14 Phenolic socket?
E14 Phenolic sockets can be used with a variety of light bulbs, including LED, incandescent, and halogen bulbs.
What is the size of an E14 Phenolic socket?
The size of an E14 Phenolic socket is standard, and the overall dimensions are typically 1.26 inches (32mm) in diameter and 1.26 inches (32mm) in height.
Are E14 Phenolic lamp holders easy to install?
Yes, E14 Phenolic lamp holders are typically easy to install and can be done by anyone with basic electrical knowledge.
Can E14 Phenolic sockets be used outdoors?
E14 Phenolic sockets can be used outdoors, but they should be protected from exposure to water and moisture.
