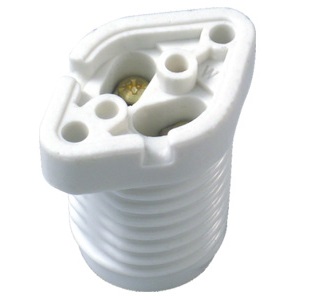

E17 ceramic halogen lamp holder socket base L026

E17 ceramic halogen lamp holder socket base L026 for LED bulbs

Ratings: 1A 250V 300W
Body Material: Porcelain / Ceramic
Body Color: White
Overall height: 45mm
Wire Specification: UL3211 200°C 18 AWG SEW-1 300V
Lamp Base: E17
Certification and Standard: CE, SAA, VDE, cRUus.

An E17 ceramic halogen lamp socket is a type of lamp holder that is commonly used in halogen lamps and other high-temperature lighting applications.

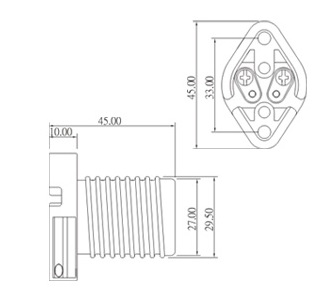

E17 ceramic halogen lamp holder socket base L026 diagram

FAQ:

What is the maximum voltage rating for an E17 ceramic lamp socket?
The maximum voltage rating for most E17 ceramic lamp sockets is 250V.

What is the maximum wattage rating for an E17 ceramic lamp holder?
The maximum wattage rating for most E17 ceramic lamp holders is 1000W.

What is the temperature rating for an E17 ceramic lamp holder?
The temperature rating for most E17 ceramic lamp holders is up to 300°C.

What materials are used to make an E17 ceramic lamp socket?
E17 ceramic lamp sockets are typically made from ceramic material, which is resistant to high temperatures and electrical insulation.

What type of bulbs are compatible with an E17 ceramic lamp socket?
E17 ceramic lamp sockets are compatible with halogen bulbs and other high-temperature bulbs.

What is the thread size for an E17 ceramic lamp holder?
The thread size for most E17 ceramic lamp holders is M14 x 1.0.

Are E17 ceramic lamp sockets compatible with dimmer switches?
Some E17 ceramic lamp sockets are compatible with dimmer switches, but it is important to check the specifications of the specific model.

Are E17 ceramic lamp sockets waterproof?
Most E17 ceramic lamp sockets are not waterproof and should not be used in wet or damp environments.

Are E17 ceramic lamp holders compatible with LED bulbs?
E17 ceramic lamp holders are not typically used with LED bulbs, as they are designed for high-temperature bulbs.

How do I install an E17 ceramic lamp holder?
Installation instructions vary depending on the specific model, but most E17 ceramic lamp holders are designed to be easy to install using basic tools.

What is the difference between an E17 ceramic lamp socket and an E12 ceramic lamp socket?
The main difference is the size of the base of the bulb that is used. E17 bulbs have a larger base than E12 bulbs.
