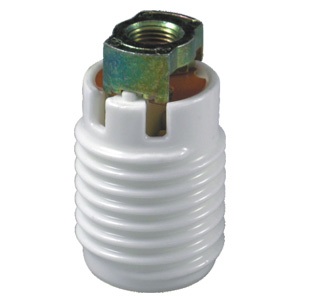

E17 ceramic halogen lamp holder socket base with bracket

E17 ceramic halogen lamp holder socket base with bracket for LED bulbs

Ratings: 1A 250V 300W
Body Material: Porcelain / Ceramic
Body Color: White
Overall height: 48.5mm
Wire Specification: UL3211 200°C 18 AWG SEW-1 300V
Lamp Base: E17
Certification and Standard: CE, VDE, cRUus.

An E17 porcelain lamp holder with brackets is a socket used to hold and connect an E17 light bulb to an electrical circuit.

The E17 bulb is a type of intermediate base bulb commonly used in small appliances, such as microwaves and refrigerators.

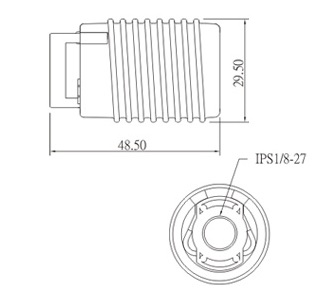

E17 ceramic halogen lamp holder socket base with bracket dimension

FAQ:

What is the maximum wattage that an E17 lamp holder can handle?
Ans: Most E17 lamp holders can handle bulbs with a maximum wattage of 75 watts.

Are E17 light sockets suitable for use with LED bulbs?
Ans: Yes, E17 lamp holders are designed to be compatible with some LED bulbs, but it is important to check the manufacturer’s specifications to ensure compatibility.

What is the difference between an E17 and an E12 light socket?
Ans: E17 light sockets are designed to hold E17 bulbs, which have a larger diameter than E12 bulbs, which are held by E12 lamp holders.

Can E17 lamp holders be used in outdoor lighting fixtures?
Ans: E17 lamp holders are not commonly used in outdoor lighting fixtures, as they are not designed to withstand the elements.

What are the common applications of E17 lamp holders?
Ans: E17 lamp holders are commonly used in small appliances such as microwaves, refrigerators, and sewing machines.

Are E17 light sockets available in different colors?
Ans: E17 light sockets are commonly available in white, black, and silver.

What is the voltage rating of an E17 lamp holder?
Ans: The voltage rating of an E17 lamp holder is typically between 100-250 volts.

Are E17 lamp holders safe to use?
Ans: E17 lamp holders are generally safe to use when installed correctly and used with bulbs that are within the recommended wattage range. However, it is important to follow proper safety guidelines and to consult a qualified electrician if unsure.

Are E17 light sockets compatible with European electrical systems?
Ans: E17 light sockets are commonly used in North America and may not be compatible with European electrical systems, which have different voltage and frequency standards.
