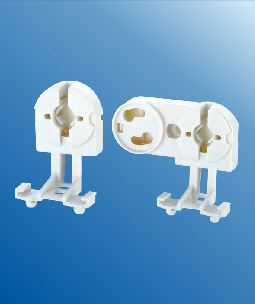

G13 Push in fluorescent light starter socket lamp holders

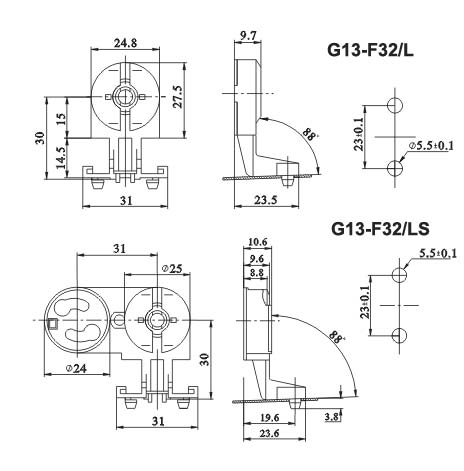

G13 Push in fluorescent light starter socket T8 lamp holders F32 LS



T8 Push in fluorescent light starter socket G13 lamp holders F32 LS:


Snap in pins
Lamp axis:30mm
With big rotor
Rated voltage/current: 250V 2A
Working temperature: 220℃
Lamp holder shape: Round, Oval, tombstone
Contacting: Phosphor bronze contacts,
stainless spring, PC body,
Rated temperature: T130/Tm110
For wall thickness: 0.5-1.1 mm
Push wire terminals 2 holes: 0.5-1mm2.
OEM: Acceptable
Packing: 1000pcs/ctn
Carton Size: 46cm×35.5cm×35cm
Weight: 27KG
Payment Method T/T: 30% deposit, balance before shipment.

A G13 fluorescent light starter socket is a lamp holder that provides a connection point for the starter of a fluorescent light.

It works by allowing the starter to complete the electrical circuit that ignites the fluorescent bulb.

Rapid Start Applications Tall Rotary Locking T5/T8/T12 Used in Troffers, Wrap Fixtures for Retro Fit Kits/Replacements Snap Wing Mounting Made from area 660W-600V Commercial Grade.

Fluorescent Lamp holders Medium Bi-Pin Sockets are for use with fluorescent lighting fixtures in flush or surface mount applications. Captive pal nut for easy mounting. Push-in wire terminals feature release slots.

James lighting produces Fluorescent Lamp holders for virtually every light source equipped with fluorescent, LED, incandescent, or CFL lamps. Fluorescent Lamp holders include incandescent medium base, and specialty sizes & fluorescent light starter sockets.



fluorescent lamp holder all types




FAQ:

Are G13 fluorescent light starter sockets compatible with LED bulbs?
Answer: No, G13 fluorescent light starter sockets are not compatible with LED bulbs because they require different electrical connections.

What materials are G13 fluorescent light starter sockets typically made from?
Answer: G13 fluorescent light starter sockets are typically made from materials such as plastic, ceramic, or metal, depending on the specific model and manufacturer.

Can G13 fluorescent light starter sockets be used with dimmer switches?
Answer: No, G13 fluorescent light starter sockets are not compatible with dimmer switches because fluorescent lights require a specific amount of electrical current to function properly.

Can G13 fluorescent light starter sockets be replaced?
Answer: Yes, G13 fluorescent light starter sockets can be replaced if they become damaged or worn out.

What is the voltage rating for a G13 fluorescent lamp holder?
Answer: The voltage rating for a G13 fluorescent lamp holder typically ranges from 100 to 277 volts, depending on the specific model and manufacturer.

What are some common applications for G13 fluorescent lamp holders?
Answer: G13 fluorescent lamp holders are commonly used in residential, commercial, and industrial settings for lighting fixtures such as fluorescent tubes, troffers, and ceiling fixtures.
