G23 GX23 Surface mounted H Tube Push in lamp holders

G23 GX23 Surface mountd H Tube Push in lamp holders

G23 GX23 lamp holder 2 Pin H Tube energy-saving LED horizontal Plug in Lamp Socket G23 two needle Plug Light BASE
Screw fixing vertically
Snap in pins
PBT body, Phosphor bronze contacts, PBT spring
Weight.11g
Package.100pcs
Rated temperature: T140
For wall thickness: 0.8-1.1 mm
Push wire terminals 1 holes: 0.5-1 mm2/18 AWG.

A G23 GX23 Push in lamp holder is a type of socket that is designed to hold G23 or GX23 base compact fluorescent bulbs. It has a push-in design that makes it easy to install and remove the bulb.

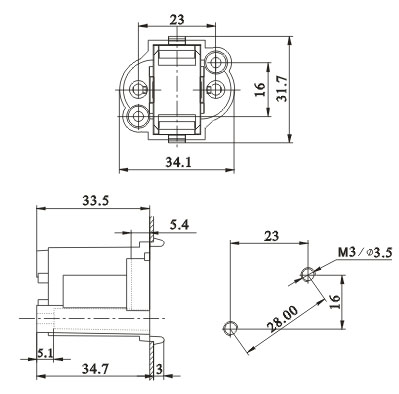

G23 GX23 Surface mountd H Tube Push in lamp holders Diagram

The compact fluorescent lamps (CFL) is a type of bulb which is commonly known for its efficiency for using less power than other commonly used bulbs, whilst still emitting the same amount of lighting.

CFLs have been designed in order to replace the incandescent lamp and can fit into most existing lighting fixtures that may have previously been used for incandescent bulbs.

When you compare the two (CLS and Incandescent) the incentive to use CLS shows due to the lower power usage for the amount of light emitted and its longer life span.

Although the CLS bulbs are usually more expensive, in the long run they are also more cost-effective too.

FAQ:

What is the maximum wattage that a G23 GX23 lamp holder can handle?
Answer: The maximum wattage that a G23 GX23 Push in lamp holder can handle will depend on the specific model, but it is typically around 13 watts.

Are G23 and GX23 base bulbs interchangeable with a G23 GX23 Push in lamp holder?
Answer: Yes, G23 and GX23 base bulbs are interchangeable with a G23 GX23 Push in lamp holder as they have the same push-in design.

Can G23 GX23 Push in lamp holders be used with LED bulbs?
Answer: No, G23 GX23 Push in lamp holders are designed specifically for use with compact fluorescent bulbs and are not compatible with LED bulbs.

Are there any safety considerations to keep in mind when using a G23 GX23 light socket?
Answer: Yes, it is important to make sure that the wattage of the bulb being used does not exceed the maximum rating of the light socket and to ensure that the lamp holder is securely installed.

Can G23 GX23 light sockets be used in outdoor lighting fixtures?
Answer: No, G23 GX23 Push in light sockets are not rated for outdoor use and should only be used in indoor lighting fixtures.

Can G23 GX23 Push in lamp holders be used with 110V electrical systems?
Answer: Yes, G23 GX23 Push in lamp holders can be used with 110V electrical systems as long as the lamp holder is rated for the appropriate voltage.

What materials are G23 GX23 Push in light sockets made of?
Answer: G23 GX23 Push in light sockets are typically made of plastic, which is known for its durability and electrical insulation properties.

Is the G23 GX23 Push in light socket compatible with dimmer switches?
Answer: No, G23 GX23 Push in light sockets are not compatible with dimmer switches.

Are G23 GX23 lamp holders compatible with electronic ballasts?
Answer: Yes, G23 GX23 Push in lamp holders are typically compatible with electronic ballasts, which are commonly used in compact fluorescent lighting fixtures.
