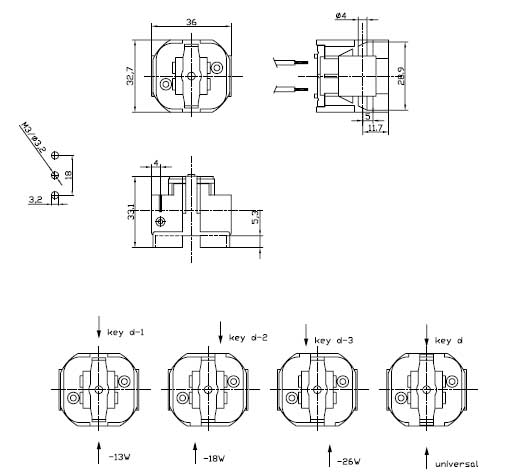

G24d GX24d 2 pin plug in CFL lamp holders
Screw fixing vertical, central
PBT body, Phosphor bronze contacts, stainless spring
Rated temperature: T140
Push wire terminals 2 holes: 0.5-1 mm2/18 AWG
A G24d GX24d CFL lamp holder is a type of socket used to hold compact fluorescent lamps in place.
The compact fluorescent lamps (CFL) are a type of bulb which is commonly known for its efficiency for using less power than other commonly used bulbs, whilst still emitting the same amount of lighting.
CFLs have been designed in order to replace the incandescent lamp and can fit into most existing lighting fixtures that may have previously been used for incandescent bulbs.
When you compare the two (CLS and Incandescent) the incentive to use CLS shows due to the lower power usage for the amount of light emitted and its longer life span.
Although the CLS bulbs are usually more expensive, in the long run they are also more cost-effective too.
What is a G24 lamp holder?
A: A G24 lamp holder is a type of socket used to hold compact fluorescent lamps in place.
What is the difference between a G24d and GX24d lamp socket?
A: The G24d lamp socket has two pins that are spaced 24mm apart, while the GX24d lamp holder has four pins that are spaced 12mm apart.
What is the maximum wattage for a G24 lamp holder?
A: The maximum wattage for a G24 lamp holder depends on the specific model, but typically ranges from 9 to 26 watts.
What is the voltage rating for a G24 lamp socket?
A: The voltage rating for a G24 lamp socket typically ranges from 100 to 240 volts.
How do I install a G24 lamp holder?
A: Installation instructions may vary depending on the specific model, but typically involve attaching the lamp holder to a surface and connecting the wiring.
Can I use a G24 lamp holder with LED bulbs?
A: Some G24 lamp holders may be compatible with LED bulbs, but it is important to check the specifications of both the lamp holder and the bulb to ensure compatibility.
Are G24 lamp sockets waterproof?
A: Some G24 lamp sockets may be waterproof or water-resistant, but it is important to check the specifications of the specific model to ensure suitability for outdoor or wet environments.
What materials are G24 lamp holders made of?
A: G24 lamp holders may be made of a variety of materials, including plastic, ceramic, and metal.
