G9 Ceramic halogen lamp holder socket base:
Rated Wattage: 500 W
Rated Voltage: 2A 250V
Wire spec: 3122 600V 200℃ 18AWG
Body Material: Porcelain / Ceramic
Body Color: White, Yellow
Overall, Height: 23 mm
Certification and Standard: PSE, CSA, UL, SAA, CE & VDE.

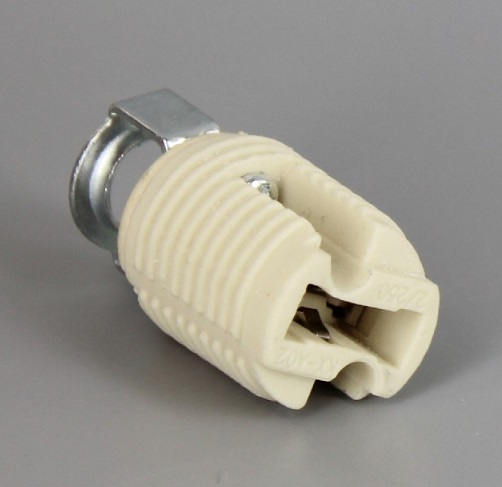

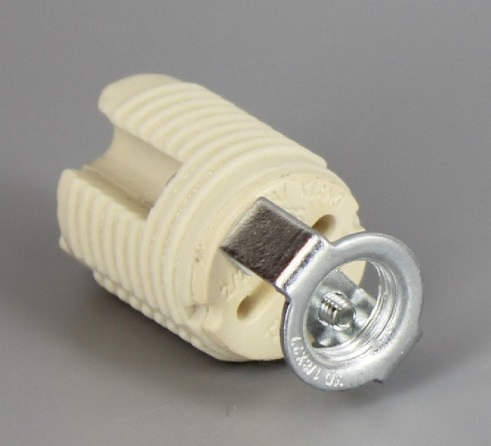

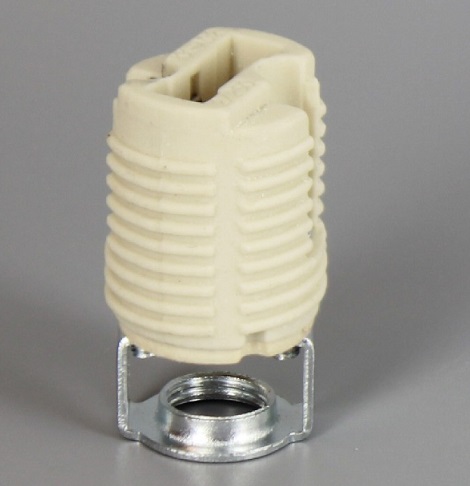

G9 ceramic lamp socket base with push terminals and 1/8IPS hickey with threaded body:
G9 halogen bulbs are a specific subset of halogen bulbs (also called halogen lamps) that have a specific connector type, in this case a 9-pin spread.
The G in its name indicates that the original bulb was constructed using glass.
What are the key features of G9 ceramic lamp sockets?
G9 ceramic lamp sockets are known for their high-temperature resistance, durability, and compatibility with a range of G9 base lamps. They are typically designed to provide a safe and reliable connection between the lamp and the electrical circuit, and are often used in applications where space is limited or where a compact lighting solution is required.
G9 ceramic lamp socket base 1/8IPS hickey applied to the conversion lamp screw lamp holders by Edison screw caps and matching screw base G9 lamp holders’ combination, the G9 lamp holders including two for contact with light feet metal member, each of the two-guide wire is connected to the screwed mouth of the lamp cap screw sleeve and G9 lamp holders for contacting lamp pin between the metal member and the screw base back sheet and another for contacting lamp pin between metal parts.
Feet of the present invention allows the G9 lamps bulbs, such as single-ended halogen bulb Edison porcelain lamp holders for easy application.
How does G9 socket work?
A G9 ceramic lamp socket is an electrical component that is used to hold and connect a G9 base lamp, which is a type of bi-pin connector commonly used in small-sized halogen or LED lamps.
The socket is typically made of high-temperature resistant ceramic and features two small pins that fit snugly into the corresponding slots of the G9 base lamp, providing a secure and stable electrical connection.
What are the voltage and current ratings for G9 ceramic lamp sockets?
The voltage and current ratings for G9 ceramic lamp sockets can vary depending on the specific model and manufacturer.
It is important to choose a lamp socket that is compatible with the voltage and current requirements of the lamp being used, to ensure optimal performance and safety.

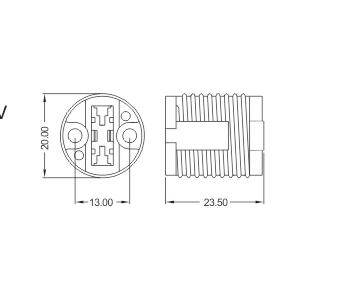

What are the dimensions of G9 ceramic lamp sockets?
G9 ceramic lamp sockets are typically small in size and have a diameter of around 15mm to 16mm. The length of the socket can vary depending on the specific model and manufacturer, but is typically less than 30mm.
What are some common applications for G9 ceramic lamp sockets?
G9 ceramic lamp sockets are commonly used in a range of lighting applications, including residential, commercial, and industrial settings. They are often used in small halogen or LED lamps, and can be found in a variety of fixtures such as ceiling lights, desk lamps, and pendant lights.
Their small size and high-temperature resistance make them a popular choice for applications where space is limited and where high temperatures are expected, such as in oven or microwave lighting.
