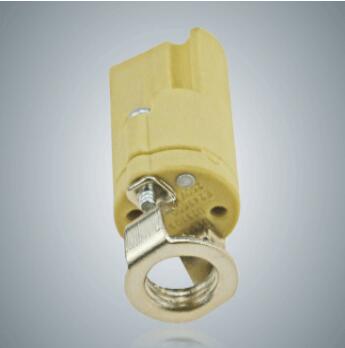

G9 porcelain light bulb socket with screw thread

G9 porcelain light bulb socket base with screw thread:

Rated Wattage: 500 W
Rated Voltage: 2A 250V
Wire spec: 3122 600V 200℃ 18AWG
Body Material: Porcelain / Ceramic
Body Color: White, Yellow
Overall Height: 23 mm
Certification and Standard: RU, SAA, CSA, CE & VDE.

A G9 porcelain socket with screw thread is a type of lamp holder that is used with G9 bulbs, which have two pins that connect to the socket and a screw thread to secure the bulb.

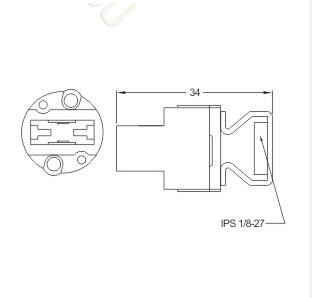

G9 porcelain light bulb socket base with screw thread drawing

Screw Threaded G9 Halogen Lamp Socket:

G9 ceramic lamp holder socket Base 250V 2A Ceramic Socket G9 Type Halogen Lamp Holder with 18cm Teflon wire
Type of Bulb Halogen
Model: G9 lamp holders
Product Dimensions: Outer diameter 28MM, 34MM High
Material: high-grade ceramic lamp
Wiring: plug wire (suitable for cross-sectional area of 0.3mm power cord)

FAQ:

What is the maximum wattage for G9 porcelain sockets?
A: The maximum wattage varies depending on the specific socket. Be sure to check the product specifications before use.

What is the voltage rating for G9 porcelain sockets?
A: The voltage rating varies depending on the specific socket. Be sure to check the product specifications before use.

Can G9 porcelain sockets be used with LED bulbs?
A: Yes, G9 porcelain sockets can be used with LED bulbs.

What is the size of a standard G9 porcelain socket?
A: The size of a G9 porcelain socket is generally small and compact, designed for use in tight spaces.

Can G9 porcelain sockets be used with dimmer switches?
A: Yes, there are G9 porcelain sockets available that are compatible with dimmer switches.

Are G9 porcelain sockets available in waterproof versions?
A: Yes, there are waterproof G9 porcelain sockets available for use in wet locations.

Can G9 porcelain sockets be used with heat lamps?
A: Yes, G9 porcelain sockets can be used with heat lamps, but be sure to choose a socket that is rated for high temperatures.

Are G9 porcelain sockets easy to install?
A: Yes, G9 porcelain sockets are generally easy to install and can be done without the help of a professional electrician.

What is the difference between a G9 socket and a G4 socket?
A: The G9 socket has a larger base and two pins that connect to the bulb, while the G4 socket has a smaller base and two pins that are closer together.

Can G9 porcelain sockets be used with halogen bulbs?
A: Yes, G9 porcelain sockets can be used with halogen bulbs.
