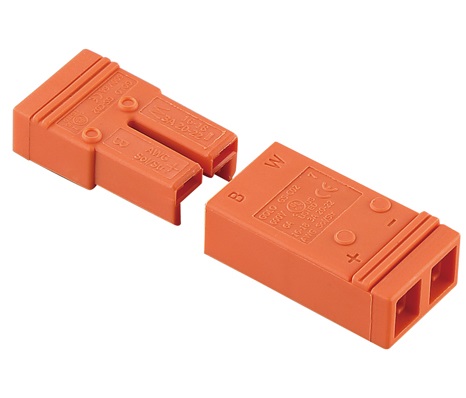

GS-C02 Wire Connectors and Terminal Blocks
Rated Voltage: 600 V
Rated Current: 8 A
Rated Temperature: 125℃
Housing Material: PC
Housing Color: Orange, Transparent
Contact Material: Copper & Stainless Steel
Mating Force: 3 kg
Unmuting Force: 2.5 kg.
Wire connectors and terminal blocks are components used to join or terminate electrical wires.

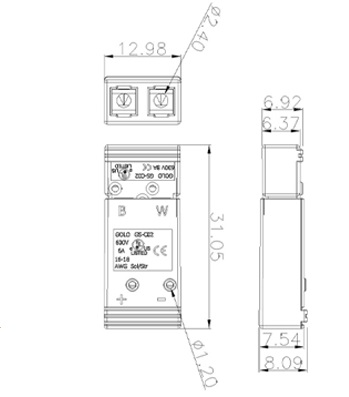

GS-C02 Wire Connectors and Terminal Blocks Dimension:
Wire Terminal: Push-in
Wire Release: Yes
Pitch: 6.30 mm
Wire Specification: 16, 18, 20, 22, 24 AWG, solid or stranded tinned
Wire Strip Length: 8 ~ 10 mm
Wire Pull-Out Force: 8 kg (with 18 AWG)
Overall Length: 31 mm
Overall Width: 13 mm
Overall Height: 8.10 mm
2-pole disconnects
Certification and Standard: CE, CQC, cULus.
FAQ:
What are the different types of wire connectors and terminal blocks?
There are many different types, including screw terminals, push-in connectors, crimp terminals, and spring clamp terminals.
What materials are used to make wire connectors and terminal blocks?
Wire connectors and terminal blocks are typically made from materials such as plastic, ceramic, or metal.
What is the maximum voltage and current rating for wire connectors and terminal blocks?
The maximum voltage and current rating vary depending on the specific model and can range from a few volts and amps to several hundred volts and amps.
Can wire connectors and terminal blocks be used with different wire sizes?
Most wire connectors and terminal blocks are designed to be used with a range of wire sizes.
What is the maximum wire size that can be used with a particular wire connector or terminal block?
The maximum wire size that can be used with a particular wire connector or terminal block varies depending on the specific model.
How do I install wire connectors and terminal blocks?
Installation instructions vary depending on the specific model, but most wire connectors and terminal blocks are designed to be easy to install using basic tools.
What is the difference between a wire connector and a terminal block?
Wire connectors are used to join wires together, while terminal blocks are used to terminate wires.
Can wire connectors and terminal blocks be used with stranded and solid wires?
Most wire connectors and terminal blocks can be used with both stranded and solid wires.
What is the temperature rating for wire connectors and terminal blocks?
The temperature rating varies depending on the specific model and can range from a few degrees Celsius to several hundred degrees Celsius.
Can wire connectors and terminal blocks be used in wet or damp environments?
Some wire connectors and terminal blocks are designed to be used in wet or damp environments, but it is important to check the specifications of the specific model.
Are wire connectors and terminal blocks reusable?
Some wire connectors and terminal blocks are reusable, while others are designed for one-time use only.
