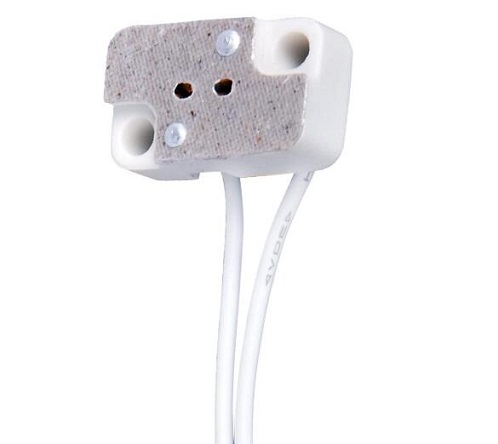

GX5.3 lamp holder socket base with 4.5mm hole fixings.

Rated at 5A 25V with temperature rating of T250.

Supplied with 150mm 0.75mm2 7599 single insulated Teflon wire (VDE approved), ends stripped to 8mm.



GX5.3 lamp holder socket base specification:
Cable kinds: silicone or Teflon or braided or high temperature cable
Cable sizes: 0.5mm2 or 0.75mm2 or 1mm2
Cable color: White or black or red/brown
Rating: 250V, 2A
Certificate: CE, VDE, Rohs and UL
Others fittings: bracket, backplate, sleeve, terminal block, terminal etc
Size: 17 mm Día x 10 mm H / 150 mm Wires.



Specification:

Base type: GX53
Voltage rating: 250V
Current rating: 2A
Material: Thermoplastic
Compact and low-profile design
Easy to install and replace
Suitable for various applications, such as under-cabinet lighting, task lighting, and display lighting.

Description:

A GX53 lamp holder is a type of socket that is commonly used to hold and connect GX53 light bulbs.

The GX53 lamp holder is designed to provide a reliable and convenient connection for GX53 light bulbs. It features a compact and low-profile design, making it ideal for use in tight spaces or where a discreet lighting solution is desired.

The holder is easy to install and replace, and it is suitable for a range of applications, including under-cabinet lighting, task lighting, and display lighting.

With its durable construction and reliable performance, the GX53 lamp holder is a popular choice among lighting professionals and DIY enthusiasts alike.



Application:

Use this to fit any MR16 or MR11 bulb into a hardwire system. It allows you to plug in your LED bulbs and attach it to normal lighting wires.

These round sockets are made from porcelain and work with MR16 lamps along with many other bi-pin lamps, including G4, G6.35, GY6.35, GX5.3 MR16, GZ4 ,MR11 porcelain lamp holders.

Package Including: 20pcs x MR16 MR11 Socket Base plug.



GX5.3 ceramic lamp holder base Features:
Termination: Wire Leads
Temperature Rating: T250
Wattage: 100W
Dimensions: 17mm (W) x 28mm (L)
Wire Length: 150mm.

This low voltage lamp holder has a Steatite base and can be used as a G5.3 / GX5.3 lamp holder for MR16 bulbs. Rated at 5A 25V and suitable for up to 50W, ideal for use with low voltage halogen and dichroic lamps.

Supplied with 150mm Teflon insulated high temperature wires, stripped to 8mm and suitable for up to 180 degrees Celsius. UL and VDE approvals and RoHS compliant.





How does GX53 lamp holder work?

A GX53 lamp holder is a type of lighting fixture commonly used in residential and commercial settings. It is designed to hold and connect a GX53 bulb, which is a low-profile, energy-efficient light bulb.

The GX53 light bulb sockets consists of a base, which is typically made of plastic or ceramic, and a connector that allows the bulb to be inserted and secured into the holder. When the bulb is screwed into the holder and connected to an electrical source, it produces light.

GX53 lamp holders are often used for under-cabinet lighting, task lighting, and other applications where a low-profile fixture is desired.

There are many benefits to using GX53 lamp holders:

1. For one, they are easy to install and use. The bulbs simply snap into place, and there are no wires or screws to worry about.
2. Additionally, GX53 bulbs are highly energy-efficient, which means they use less electricity than traditional incandescent bulbs.
3. This can result in significant cost savings over time, especially in commercial settings where large numbers of bulbs are used.
4. Finally, GX53 lamp holders are very durable and long-lasting, which means they require less maintenance and replacement than other types of fixtures.





What are the different types of GX53 lamp holders available?



There are several different types of GX53 lamp holders available, each with its own unique features and benefits.

1. One common type is the standard GX53 lamp holder, which is designed to hold a single GX53 bulb. These are typically made of plastic or ceramic and can be mounted directly to a surface or installed into a fixture.
2. Another type is the GX53 connector, which allows multiple GX53 bulbs to be connected together in a series. This is useful for creating long, continuous lines of light, such as for under-cabinet lighting.
3. In addition to standard GX53 lamp holders and connectors, there are also a variety of specialty GX53 fixtures available.
4. For example, there are GX53 puck lights, which are small, circular fixtures that can be installed into cabinets or other tight spaces. There are also GX53 track lights, which allow for more directional lighting, and GX53 recessed lights, which are designed to be installed flush with the ceiling or wall.
5. Finally, there are GX53 dimmable lamp holders, which allow for the brightness of the bulb to be adjusted based on the user’s preferences.





What are the advantages of using GX53 LED bulbs in GX53 sockets?

Based on my experience, GX53 LED bulbs offer 3 advantages over traditional incandescent bulbs.

1. For one, they are much more energy-efficient, which means they use less electricity and can save businesses and homeowners money on their energy bills. Additionally, GX53 LED bulbs last much longer than incandescent bulbs, which means they require less frequent replacement and maintenance.
2. Another advantage of using GX53 LED bulbs in GX53 lamp holders is that they offer better color rendering. LED bulbs produce a higher-quality, more natural-looking light than incandescent bulbs, which can be important in settings where accurate color representation is important, such as in retail stores or art galleries.
3. Finally, LED bulbs are more environmentally friendly than incandescent bulbs, as they do not contain hazardous materials and produce less heat, which can help reduce cooling costs in warmer climates.
