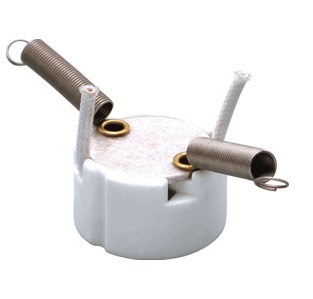

GZ10 Ceramic lamp holder base light sockets with spring

GZ10 Ceramic lamp holder base with spring



GZ10 Ceramic lamp holder base with spring for halogen LED bulbs


Ratings: 250 W, 250 V (UL) / 250 V, 2 A, T250 (VDE)
Body Material: Porcelain / Ceramic
Body Color: White
Wire Specification: UL3211 200°C 18 AWG
Overall, Height: 28.5 mm
Lamp Base: GZ10
Certification and Standard: CE, VDE, SAA and UL.

A GZ10 Ceramic lamp holder with spring is a type of socket used in various lighting fixtures. It is designed to hold and connect the GZ10 bulb to the electrical supply.

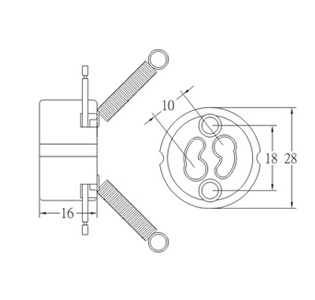

GZ10 Ceramic lamp holder base with spring dimension





FAQ:

Can the GZ10 Ceramic lamp holder with spring be used with LED bulbs?
Answer: Yes, the GZ10 Ceramic lamp holder with spring can be used with LED bulbs as long as the voltage and wattage rating of the bulb match the socket.

What is the operating temperature range of the GZ10 Ceramic lamp socket with spring?
Answer: The operating temperature range of the GZ10 Ceramic lamp socket with spring is typically between -40°C and 120°C.

What are the dimensions of the GZ10 Ceramic lamp socket with spring?
Answer: The dimensions of the GZ10 Ceramic lamp socket with spring vary depending on the manufacturer, but typically it is around 27mm in diameter and 20mm in height.

Can the GZ10 Ceramic light socket with spring be used in outdoor lighting fixtures?
Answer: Yes, the GZ10 Ceramic socket with spring can be used in outdoor lighting fixtures as long as it is rated for outdoor use.

Is the GZ10 Ceramic lamp holder with spring compatible with dimmer switches?
Answer: Yes, the GZ10 Ceramic lamp holder with spring is compatible with dimmer switches as long as the bulb used is also dimmable.

What materials are used to make the GZ10 Ceramic light socket with spring?
Answer: The GZ10 Ceramic light socket with spring is typically made from high-temperature ceramic and metal components.

How is the GZ10 Ceramic lamp holder with spring installed in a lighting fixture?
Answer: The GZ10 Ceramic lamp holder with spring is typically screwed into the lighting fixture and connected to the electrical supply using wires.

Can the GZ10 Ceramic light socket with spring be used with halogen bulbs?
Answer: Yes, the GZ10 Ceramic light socket with spring can be used with halogen bulbs as long as the voltage and wattage rating of the bulb match the socket.
