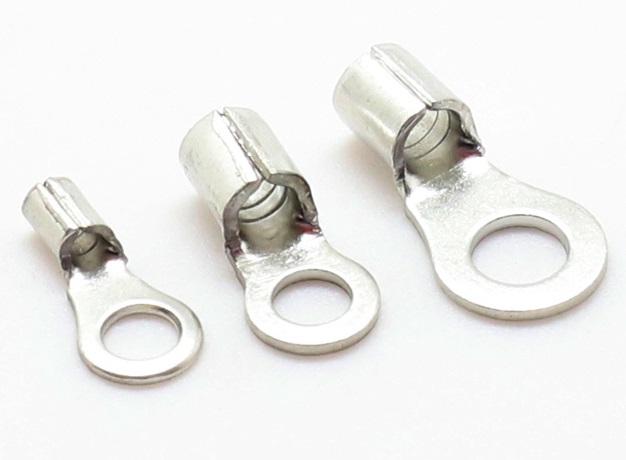

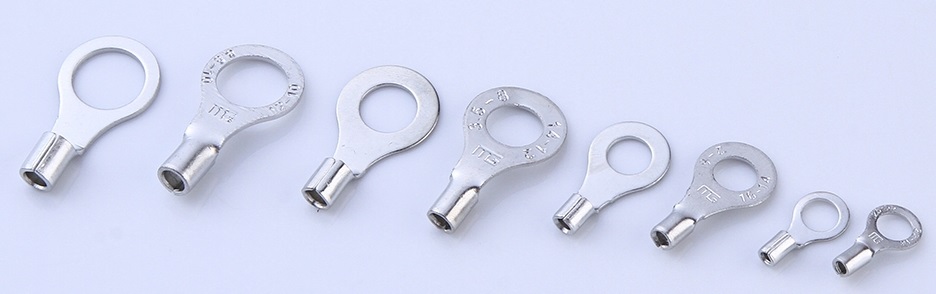

Non-Insulated Ring Terminal AWG 16-14 STUD SIZE #4 #6 #8 #10 1/4 5/16 3/8 1/2 RNB Non-Insulated Ring Terminal
| Terminal Type | Non-Insulated Ring Terminal |
| Surface Treatment | Tin |
| Shape | Round |
| Color | Nature |
| Thickness | 0.8mm |
| Material | Copper |
| Cable Size | 1.5~2.5mm2 |

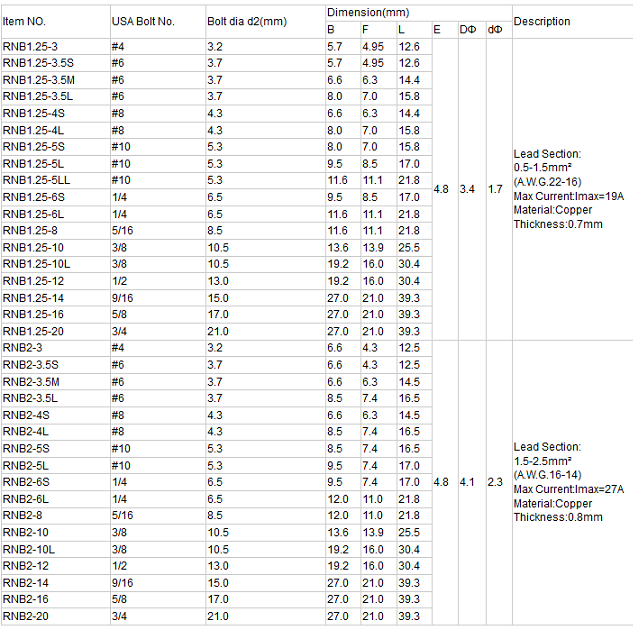

Non-insulated RNB international standard size copper ring terminals AWG 16-14 STUD SIZE #4 #6 #8 #10 1/4 5/16 3/8 1/2.
Single package size: 3X0.8X0.8 cm
Single gross weight: 0.001 kg
Package Type:
1st.100 pcs per Bag
2nd.10 bag per Box
3rd.25 box per Cartoon
FAQ:
What is the RNB size for non-insulated copper ring terminals?
The RNB size for non-insulated copper ring terminals is typically 22-16 AWG.
What is the temperature rating for non-insulated copper ring terminals?
The temperature rating for non-insulated copper ring terminals varies depending on the material and coating, but can range from -40°C to 150°C.
What is the maximum current capacity of non-insulated copper ring terminals?
The maximum current capacity of non-insulated copper ring terminals depends on the wire size and application, but can typically range from 10 to 200 amps.
What type of wire can be used with non-insulated copper ring terminals?
Non-insulated copper ring terminals can be used with solid or stranded copper wire.
What is the difference between non-insulated and insulated copper ring terminals?
Non-insulated copper ring terminals are not coated with insulation, whereas insulated copper ring terminals have a coating of insulation to prevent electrical contact.
What is the installation process for non-insulated copper ring terminals?
The installation process for non-insulated copper ring terminals involves stripping the wire, crimping the terminal onto the wire, and then securing it in place with a bolt or screw.
Can non-insulated copper ring terminals be used in marine applications?
Non-insulated copper ring terminals are not recommended for use in marine applications due to the potential for corrosion.
What is the material composition of non-insulated copper ring terminals?
Non-insulated copper ring terminals are typically made of high-quality copper with a tin or nickel plating.
Are non-insulated copper ring terminals suitable for high-vibration applications?
Non-insulated copper ring terminals are not recommended for high-vibration applications as they may become loose over time.
What is the difference between RNB and RNY size for non-insulated copper ring terminals?
The RNY size for non-insulated copper ring terminals is larger than the RNB size, with a range of 8-2 AWG.
Are non-insulated copper ring terminals compatible with all terminal blocks?
Non-insulated copper ring terminals may not be compatible with all types of terminal blocks and should be selected based on the specific application and requirements.
