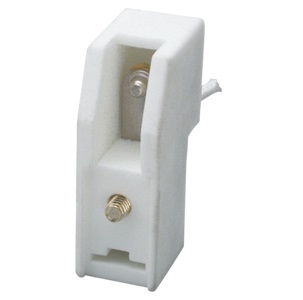

Single R7S porcelain lamp holder socket base MODEL-A

R7S porcelain lamp socket base MODEL-A for halogen LED bulbs

Ratings: 150V/250V 500W
Body Material: Porcelain / Ceramic
Body Color: White
Wire Specification: UL3211 200°C 18 AWG
Lamp Base: R7S
Certification and Standard: CE, VDE, SAA & UL.

A Single R7S porcelain lamp socket is a type of light socket that is designed to hold a single R7S halogen or LED bulb. It is typically made from porcelain material and has a durable construction that allows it to withstand high temperatures and electrical currents.

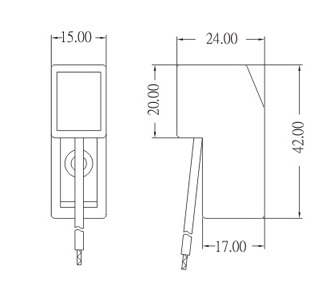

R7S porcelain lamp socket base MODEL-A dimension

Features:

Made from high-quality porcelain material
Designed to hold a single R7S halogen or LED bulb
Can withstand high temperatures and electrical currents
Easy to install and use.

Description:
The Single R7S porcelain lamp socket is an essential component for lighting fixtures that use R7S bulbs. It provides a secure and reliable connection between the bulb and the electrical wiring, ensuring optimal performance and safety.

With its durable construction and high-temperature resistance, this lamp socket is suitable for use in a variety of settings, including residential and commercial applications. Its easy-to-install design makes it a popular choice for DIY enthusiasts and professional electricians alike.

FAQ:

What is an R7S porcelain lamp socket used for?
An R7S porcelain lamp socket is typically used for halogen or quartz lamps.

What is the maximum wattage that an R7S porcelain lamp socket can handle?
Most R7S porcelain lamp sockets can handle up to 500 watts.

What is the voltage rating for an R7S porcelain lamp socket?
The voltage rating for an R7S porcelain lamp socket is typically 250V.

What are the dimensions of an R7S porcelain lamp holder?
The dimensions of an R7S porcelain lamp holder can vary, but they typically have a length of around 78mm and a width of around 30mm.

Can an R7S porcelain lamp socket be used with LED bulbs?
Yes, R7S porcelain lamp sockets can be used with LED bulbs that are designed to fit this type of socket.

What is the temperature rating for an R7S porcelain lamp socket?
The temperature rating for an R7S porcelain lamp socket can vary, but they are typically rated for temperatures up to 300 degrees Celsius.

What materials are used to make an R7S porcelain lamp holder?
R7S porcelain lamp holders are typically made from porcelain and brass or copper contacts.

What certifications are required for R7S porcelain lamp holders?
Certifications required for R7S porcelain lamp holders can vary depending on the country or region they will be used in, but they may need to meet standards such as CE, SAA, and UL.
