Single T8 Push in fluorescent led tube holders converter

Push in fluorescent led tube holders converter G13 F255

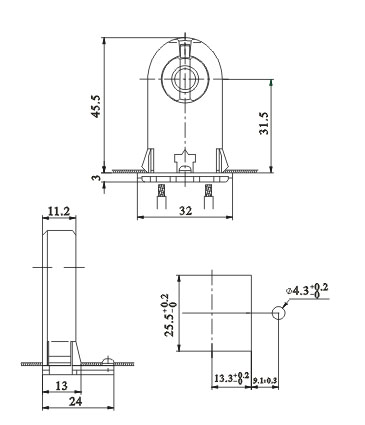

fluorescent led tube holders converter G13 F255 drawing dimension size

LED Fluorescent (T8) lamp holder for light fixtures:
Type of Bulb: Fluorescent, LED, CFL lamps
Base: Turn-type T8 (medium Bi-Pin)
HS code: 9405920000
T8 lamp holder is suitable for all kinds of fluorescent light lamp.
All T8 Fluorescent lamp holders should pass 4 quality inspections before loading.
QC Standard: CE, CQC, CUL, VDE, UL, PSE.

A T8 fluorescent tube holder is a socket that holds a T8 tube in place and connects it to an electrical circuit. The T8 tube is a type of fluorescent light bulb commonly used in commercial and industrial lighting applications.

T8 fluorescent led lamp holder sockets base G13 types

Commercial Grade Fluorescent Lamp holders Medium Bi-Pin Sockets are for use with fluorescent lighting fixtures in flush or surface mount applications.

Captive pal nut for easy mounting. Push-in wire terminals feature release slots.

James lighting produces Fluorescent Lamp holders for virtually every light source equipped with fluorescent, LED, incandescent, or CFL lamps.

Fluorescent Lamp holders include incandescent medium base, and specialty sizes & fluorescent light fixture holders.

FAQ:

What is the maximum wattage that a T8 tube holder can handle?
Ans: Most T8 tube holders can handle bulbs with a maximum wattage of 32-36 watts.

What is the difference between T8 and T12 tube holders?
Ans: T8 tube holders are designed to hold T8 fluorescent tubes, which have a diameter of 1 inch, while T12 tube holders are designed to hold T12 fluorescent tubes, which have a diameter of 1.5 inches.

Are T8 tube holders suitable for use with LED tubes?
Ans: Yes, some T8 tube holders are designed to be compatible with LED tubes, but it is important to check the manufacturer’s specifications to ensure compatibility.

What are the common applications of T8 tube holders?
Ans: T8 tube holders are commonly used in commercial and industrial lighting applications such as warehouses, parking garages, and office buildings.

Are T8 tube holders available in different colors?
Ans: T8 tube holders are commonly available in white, black, and silver.

Can T8 tube holders be used in outdoor light fixtures?
Ans: Yes, T8 tube holders can be used in outdoor light fixtures, as long as the fixture is rated for outdoor use.

What is the voltage rating of a T8 tube holder?
Ans: The voltage rating of a T8 tube holder is typically between 100-277 volts.

Are T8 tube holders safe to use?
Ans: T8 tube holders are generally safe to use when installed correctly and used with bulbs that are within the recommended wattage range. However, it is important to follow proper safety guidelines and to consult a qualified electrician if unsure.
