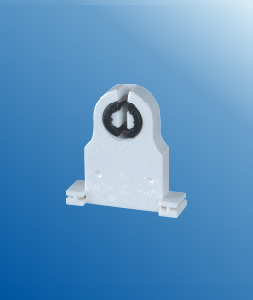

T8 Slide on LED fluorescent light holders G13 F04:
Lamp axis: 23 mm
With big rotor
Rated voltage/current: 250V 2A
Working temperature: 220℃
Lamp holder shape: Round, Oval, tombstone
Contacting: Phosphor bronze contacts,
stainless spring, PC body,
Rated temperature: T130/Tm110
For wall thickness: 0.6-1.0 mm
Push wire terminals 2 holes: 0.5-1mm2.
OEM: Acceptable.
Packing: 1000pcs/ctn
Carton Size: 46cm×35.5cm×35cm
Weight: 27KG
Payment Method T/T: 30% deposit, balance before shipment.
A Single T8 Slide is a type of fluorescent light holder that is designed to hold a single T8 tube with a G13 base.
The slide is used to secure the tube in place and make electrical contact with the fixture.
T8 LED fluorescent light holders G13 are a kind of device which mechanically supports a lamp for the purposes of making electrical contact with the lamp.
Fluorescent lamp sockets’ power waste is low, and have no effect on the environment. Lamp holders offer a lighting design service for houses and residential property.
Especially in energy-efficient lighting. fluorescent lamp sockets which are made of flexible, highly transparent, and thermally endurable material, and forms a straight opening to contain a string of Christmas decoration lamps is disclosed.
FAQ:
Can T8 fluorescent light holders be used with LED tubes?
Answer: Some T8 fluorescent light holders can be used with LED tubes that have a G13 base.
Can T8 fluorescent lamp sockets be used in damp locations?
Answer: Some T8 fluorescent lamp sockets are rated for use in damp locations, but it depends on the specific model.
What is the difference between a T8 and T12 fluorescent lamp socket?
Answer: T8 fluorescent lamp sockets are designed to hold T8 tubes, which are smaller and more energy-efficient than T12 tubes.
Are T8 fluorescent lamp sockets compatible with electronic ballasts?
Answer: Yes, T8 fluorescent lamp sockets are compatible with electronic ballasts.
Can T8 fluorescent light holders be used in outdoor applications?
Answer: Some T8 fluorescent light holders are rated for outdoor use, but it depends on the specific model.
What is the maximum temperature rating for T8 fluorescent light holders?
Answer: The maximum temperature rating for T8 fluorescent light holders is typically around 90 degrees Celsius.
Are T8 fluorescent lamp sockets compatible with shunted or non-shunted sockets?
Answer: T8 fluorescent lamp sockets are typically compatible with shunted sockets, but non-shunted sockets may require a different type of holder.
