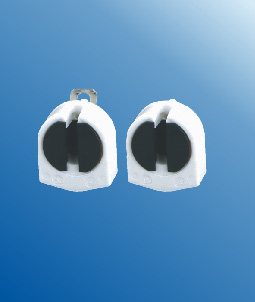

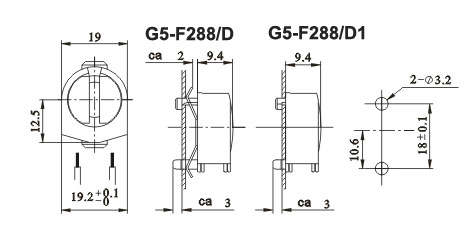

T5 End fixing fluorescent LED lamp holders G5 F288 D1
Snap in pins with/without spring
Rated voltage/current: 250V 2A
Working temperature: 220℃
Lamp holder shape: Round, Oval, tombstone
Contacting: Phosphor bronze contacts,
stainless spring, PC body,
Rated temperature: T130/Tm110
For wall thickness: 0.6-1.0 mm
Push wire terminals 2 holes: 0.5-1mm2.
Weight: 4g; Package: 3000pcs
OEM: Acceptable
Carton Size: 46cm×35.5cm×35cm
Weight: 15KG
Payment Method T/T: 30% deposit, balance before shipment.
A T5 End fixing fluorescent lamp holder is a type of socket designed to hold T5 fluorescent tubes in place.
Single T5 End fixing fluorescent LED lamp holders:
1) 220v 50HZ or 110v 60HZ.
2) double tubes or single tube for option.
3) can suit for T8/T10 led tube, or fluorescent tube
4) material is iron
5) excellent quality and competitive price.
The lamp holder allows you to connect a live and neutral wire to one end of the tube.
Caution: to avoid risk of fire make sure your tubes do not exceed the recommended wattage indicated on your light fixture.
T5 End fixing fluorescent light sockets, commonly called “fluorescent lamp holder”, LED holders for fluorescent lamps: tube T5, T8, T12 and T2 with reduced dimensions, Slimline, circular, VHO (Very High Output) lamps and HO (High Output) with high luminous efficiency, “U” shaped and compact fluorescent lamps.
LED tubes are the most used lamps for the internal lighting of industrial and commercial areas.
FAQ:
What is a T5 End fixing fluorescent lamp holder?
A T5 End fixing fluorescent lamp holder is a lamp holder specifically designed to hold T5 fluorescent tubes.
What is the maximum wattage rating for T5 fluorescent lamp holders?
The maximum wattage rating varies depending on the specific model, but typically ranges from 8W to 80W.
Are T5 End fixing fluorescent lamp sockets easy to install?
T5 End fixing fluorescent lamp sockets are generally easy to install using basic tools.
Can T5 End fixing fluorescent lamp holders be used with dimmer switches?
T5 End fixing fluorescent lamp holders are not typically used with dimmer switches.
What materials are T5 End fixing fluorescent lamp sockets made of?
T5 End fixing fluorescent lamp sockets can be made of a variety of materials including plastic and metal.
What is the maximum voltage rating for T5 fluorescent lamp sockets?
The maximum voltage rating varies depending on the specific model, but typically ranges from 250V to 600V.
Can T5 fluorescent lamp sockets be used in outdoor applications?
T5 End fixing fluorescent lamp sockets are not typically used in outdoor applications.
How many pins do T5 End fixing fluorescent lamp sockets have?
T5 End fixing fluorescent lamp sockets typically have two pins.
Are T5 End fixing fluorescent lamp holders compatible with different types of T5 tubes?
T5 End fixing fluorescent lamp holders are designed specifically for T5 tubes and may not be compatible with other types of fluorescent tubes.
What is the difference between T5 fluorescent lamp holders and T8 fluorescent lamp holders?
T5 End fixing fluorescent lamp holders are designed to hold T5 fluorescent tubes, which are smaller in diameter than T8 fluorescent tubes. T8 End fixing fluorescent lamp holders are designed to hold T8 fluorescent tubes.
Are T5 fluorescent lamp sockets suitable for use in commercial lighting applications?
Yes, T5 End fixing fluorescent lamp sockets are commonly used in commercial lighting applications.
