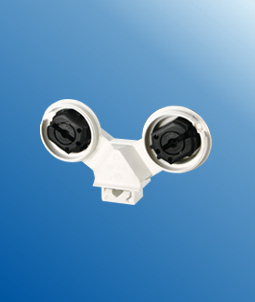

T8 G13 twin slots lamp insertion screw base with rotary

T8 G13 Protected twin slots lamp insertion screw lamp holders with rotary

G13 Protected twin slots lamp insertion screw lamp holders with rotary F31 B2

Sanp in foot 17.5X25.5mm
PC body, PBT interior, Phosphor bronze contacts
Weight.44g
Package.50pcs
Rated temperature: T140/Tm110
IP67
Push wire terminals 2 holes: 0.5-1 mm2/18 AWG

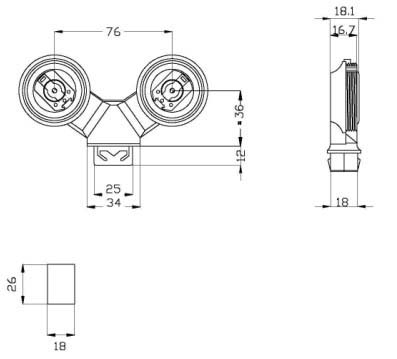

T8 G13 Protected twin slots lamp insertion screw base diagram

Rapid Start Applications Tall Rotary Locking T8 Used in Troffers and Wrap Fixtures for Retro Fit Kits/Replacements Snap Wing Mounting Made from area 660W-600V.

Commercial Grade Fluorescent Lamp holders Medium Bi-Pin Sockets are for use with fluorescent lighting fixtures in flush or surface mount applications. Captive pal nut for easy mounting. Push-in wire terminals feature release slots.

James lighting produces Fluorescent Lamp holders for virtually every light source equipped with fluorescent, LED, incandescent, or CFL lamps. Fluorescent Lamp holders include incandescent medium base, and specialty sizes & fluorescent light fixture holders.

FAQ:

What is a T8 lamp base?
A: A T8 lamp base is a type of socket that is designed to hold T8 fluorescent light bulbs.

What is the difference between a T8 and T12 lamp base?
A: The T8 lamp base is smaller than the T12 base and is designed to hold T8 fluorescent light bulbs, which are more energy-efficient than T12 bulbs.

What is the maximum wattage for bulbs in a T8 lamp holder?
A: The maximum wattage for bulbs in a T8 lamp holder depends on the specific socket and its rating. Always check the manufacturer’s specifications before use.

What is a G13 lamp holder?
A: A G13 lamp holder is a type of socket that is used for T8 and T12 fluorescent light bulbs, and features two pins spaced 13mm apart.

What is the difference between a single pin and a double pin lamp base?
A: A single pin lamp base features one pin, while a double pin lamp base, such as the G13, features two pins.

What is a twin slots lamp holder?
A: A twin slots lamp holder is a type of socket that features two slots for securing a fluorescent light bulb, such as the T8 or T12.

What is a rotary lamp holder?
A: A rotary lamp holder is a type of socket that can rotate, allowing for adjustment of the bulb’s orientation and direction of light.

Are T8 lamp bases compatible with LED bulbs?
A: T8 lamp bases can be compatible with certain types of LED bulbs, as long as the bulb is designed to fit the T8 base.
