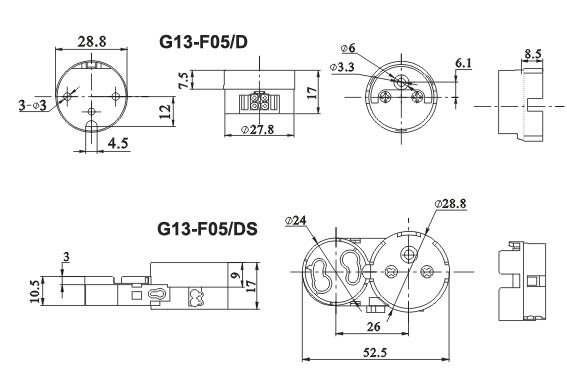

T8 Push on fluorescent LED tube lamp holders G13 F05 DS:
Snap in pins
Lamp axis: 26 mm
With big rotor
Rated voltage/current: 250V 2A
Working temperature: 220℃
Lamp holder shape: Round, Oval, tombstone
Contacting: Phosphor bronze contacts,
stainless spring, PC body,
Rated temperature: T130/Tm110
For wall thickness: 0.5-1.1 mm
Push wire terminals 2 holes: 0.5-1mm2.
OEM: Acceptable
Packing: 1000pcs/ctn
Carton Size: 46cm×35.5cm×35cm
Weight: 27KG
Payment Method T/T: 30% deposit, balance before shipment.

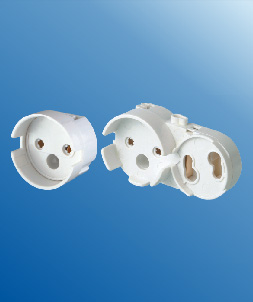

A T8 Push on fluorescent LED tube lamp holder is a type of socket, The base is designed to hold T8 fluorescent or LED tube lamps using a push-on mechanism.
Fluorescent LED tube lamp holders G13, commonly called “fluorescent lamp holder”, LED holders for fluorescent lamps: tube T5, T8, T12 and T2 with reduced dimensions, Slimline, circular, VHO (Very High Output) lamps and HO (High Output) with high luminous efficiency, “U” shaped and compact fluorescent lamps.
LED tubes are the most used lamps for the internal lighting of industrial and commercial areas.
FAQ:
Is it safe to use LED tubes with a T8 fluorescent lamp holder?
Answer: Yes, as long as the LED tubes are compatible with the T8 holder.
Can a T8 fluorescent light socket be used with a dimmer switch?
Answer: No, fluorescent lamps are not dimmable.
What is the material of the T8 fluorescent lamp holder?
Answer: The body is typically made of plastic or polycarbonate, and the contacts are typically made of copper or brass.
Can a T8 fluorescent light socket be used outdoors?
Answer: Yes, as long as it is protected from the elements.
Can a T8 fluorescent light socket be used with a reflector?
Answer: Yes, as long as the reflector is compatible with the holder.
Can a T8 fluorescent lamp holder be used with a shunted or non-shunted socket?
Answer: It depends on the design of the lamp holder, so check the specifications before use.
Can a T8 fluorescent light socket be used with a starter?
Answer: Yes, a starter is typically required for T8 fluorescent lamps.
