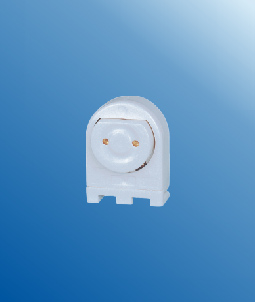

T8 Slide on screw LED fluorescent lamp holder sockets







T8 Slide on screw LED fluorescent lamp holders G13 F05

T8 Slide on screw LED fluorescent lamp holders G13 F05:


Lamp axis: 23 mm
With big rotor
Rated voltage/current: 250V 2A
Working temperature: 220℃
Lamp holder shape: Round, Oval, tombstone
Contacting: Phosphor bronze contacts,
stainless spring, PC body,
Rated temperature: T130/Tm110
For wall thickness: 0.6-1.0 mm
Push wire terminals 2 holes: 0.5-1mm2.
OEM: Acceptable
Packing: 1000pcs/ctn
Carton Size: 46cm×35.5cm×35cm
Weight: 27KG
Payment Method T/T: 30% deposit, balance before shipment.

A T8 Slide on screw lamp holder is a type of socket designed to hold T8 fluorescent lamps in place using a sliding mechanism and screw-in terminals.

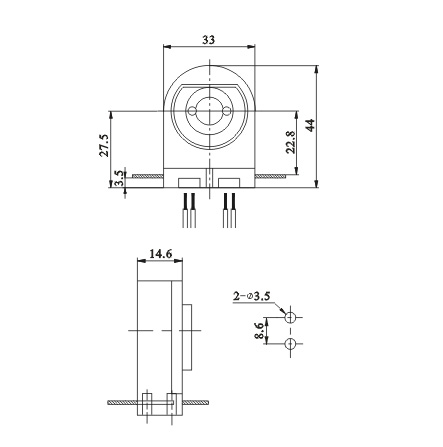

screw LED fluorescent lamp holders G13 F05 diagram



Single T8 screw LED fluorescent lamp holders lighting fixture:


1) 220v 50HZ or 110v 60HZ.
2) double tubes or single tube for option.
3) can suit for T8/T10 led tube, or fluorescent tube
4) material is iron
5) excellent quality and competitive price.
The lamp holder allows you to connect a live and neutral wire to one end of the tube.


Caution: to avoid risk of fire make sure your tubes do not exceed the recommended wattage indicated on your light fixture.







FAQ:

How do I install a T8 Slide on screw lamp holder?
To install a T8 Slide on screw lamp holder, first turn off the power, then remove the old lamp holder, and finally, attach the new holder by screwing it into place and sliding the lamp into position.


Can T8 Slide on screw lamp sockets be used with LED tubes?
T8 Slide on screw lamp holders can be used with LED tubes that are compatible with T8 lamp holders.


What is the voltage rating of T8 Slide on screw lamp holders?
The voltage rating of T8 Slide on screw lamp holders is typically 600V.


Are T8 Slide on screw lamp holders compatible with dimmer switches?
T8 Slide on screw lamp holders are not typically compatible with dimmer switches.


What materials are T8 Slide on screw lamp holders made from?
T8 Slide on screw lamp holders are typically made from materials such as plastic or ceramic.


What is the size of T8 Slide on screw lamp holders?
The size of T8 Slide on screw lamp holders can vary depending on the specific model and manufacturer.


How many pins do T8 Slide on screw lamp sockets have?
T8 Slide on screw lamp sockets do not have pins, but instead use screw-in terminals.


Are T8 Slide on screw lamp sockets waterproof?
T8 Slide on screw lamp sockets are not typically waterproof, but some models may be rated for use in damp locations.


What is the warranty on T8 Slide on screw lamp holders?
2 years.
