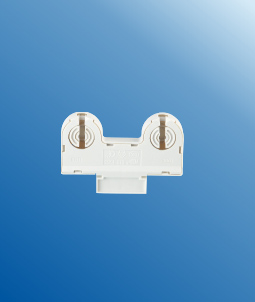

Twin fluorescent lamp holders G13 F263 D base
Snap in foot with locating pin
Rated voltage/current: 250V 2A
Working temperature: 220℃
Lamp holder shape: Round, Oval, tombstone
Contacting: Phosphor bronze contacts,
stainless spring, PC body,
Rated temperature: T130/Tm110
For wall thickness: 0.6-1.0 mm
Push wire terminals 2 holes: 0.5-1mm2.
OEM: Acceptable
Packing: 1000pcs/ctn
Carton Size: 46cm×35.5cm×35cm
Weight: 27KG
Payment Method T/T: 30% deposit, balance before shipment.
A twin fluorescent lamp holder G13 is a socket designed to hold two G13 base fluorescent lamps side by side, typically used in commercial lighting applications.
Double fluorescent lamp holders G13 F263 D base:
Type of Bulb: Fluorescent, LED, CFL lamps
Base: Turn-type T8 (medium Bi-Pin)
HS code: 9405920000
T8 lamp holder is suitable for all kinds of fluorescent light lamp.
All T8 Fluorescent lamp holders should pass 4 quality inspections before loading.
QC Standard: CE, CQC, CUL, SAA, VDE, UL, PSE.
Double fluorescent lamp holders LED lighting fixture:
1) 220v 50HZ or 110v 60HZ.
2) double tubes or single tube for option.
3) can suit for T8/T10 led tube, or fluorescent tube
4) material is iron
5) excellent quality and competitive price.
The lamp holder allows you to connect a live and neutral wire to one end of the tube.
Caution: to avoid risk of fire make sure your tubes do not exceed the recommended wattage indicated on your light fixture.
FAQ:
What is a G13 fluorescent socket?
A G13 fluorescent socket is a type of socket designed to hold G13 base fluorescent lamps.
What types of lamps can be used with G13 lamp holders?
G13 lamp holders are designed for use with T8 and T12 fluorescent lamps.
What is the maximum wattage for a G13 socket?
G13 sockets are typically rated for 32 watts per lamp.
What is the difference between a shunted and non-shunted G13 lamp holder?
Shunted G13 lamp holders have internal connections that allow electricity to flow between the pins of the lamp. Non-shunted sockets do not have these connections and require separate wiring for each pin.
Can G13 sockets be used with LED lamps?
Yes, G13 sockets can be used with compatible LED lamps.
Can G13 lamp holders be used in high-temperature environments?
G13 lamp holders are typically rated for use in temperatures up to 90 degrees Celsius, but some specialized sockets can be used in higher-temperature environments.
What is the difference between a G13 socket and a G5 socket?
G13 sockets are designed for use with T8 and T12 lamps, while G5 sockets are designed for use with T5 lamps. G5 sockets have a smaller pin spacing than G13 sockets.
What is the difference between a single and twin G13 lamp holder?
A single G13 lamp holder is designed to hold one G13 base fluorescent lamp, while a twin G13 socket is designed to hold two G13 base fluorescent lamps side by side.
